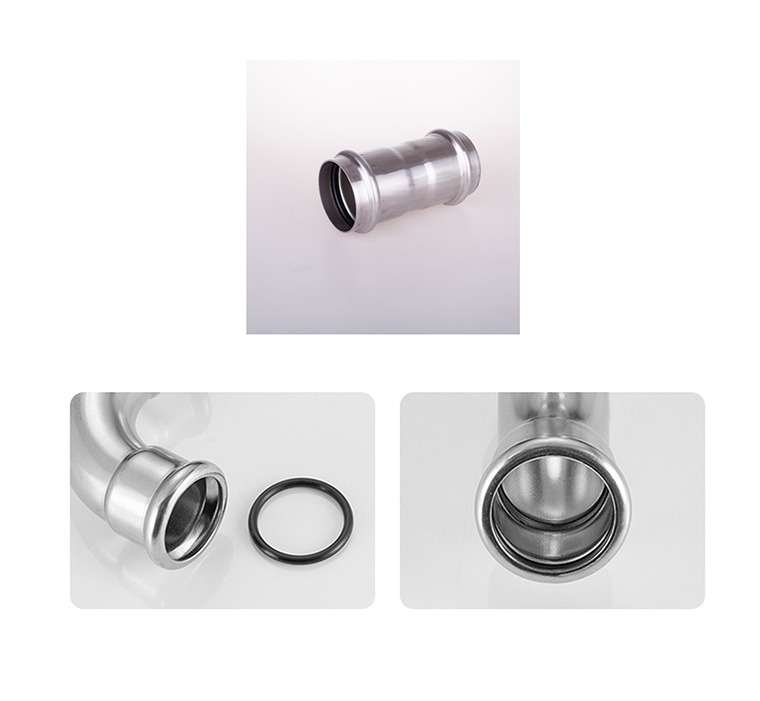

Stainless steel Equal Coupling

Stainless steel Equal Coupling --is often used to joint the main pipe/tube.

The stainless steel equal coupling with o-ring gaskets, made of black EPDM, are resistant to aging, heat and chemical additives and are therefore particularly suitable for all types of treated water.

Conditions of usage:
- Maximum operating pressure: 16 Mpa
- Operating temperature: -20 °C +85 °C
- Maximum temperature: 120 °C

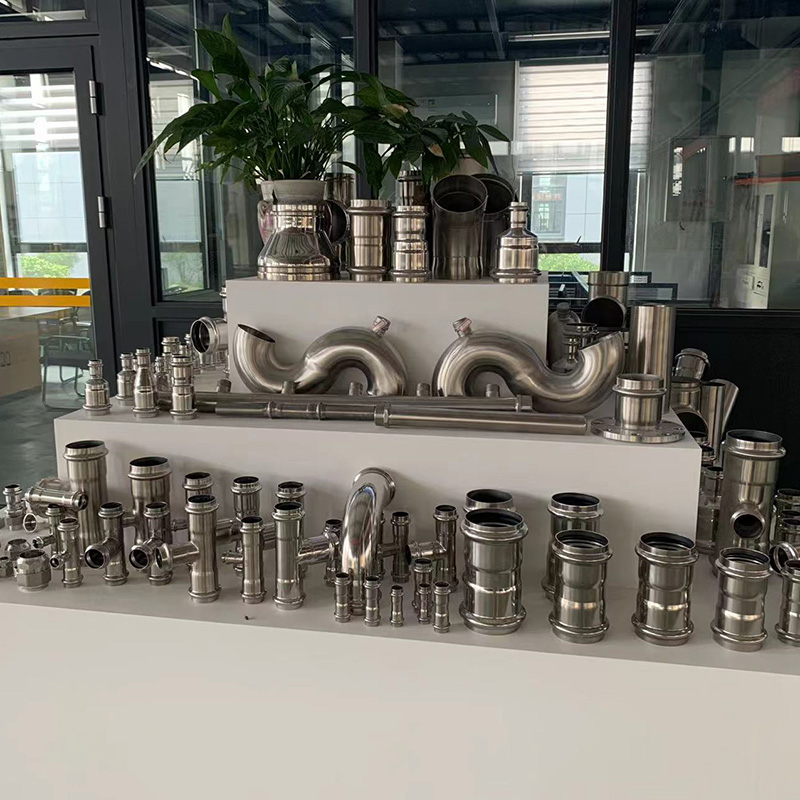

Production display

Modes:DN15-DN100.

Supply Ability:200000 ton/year

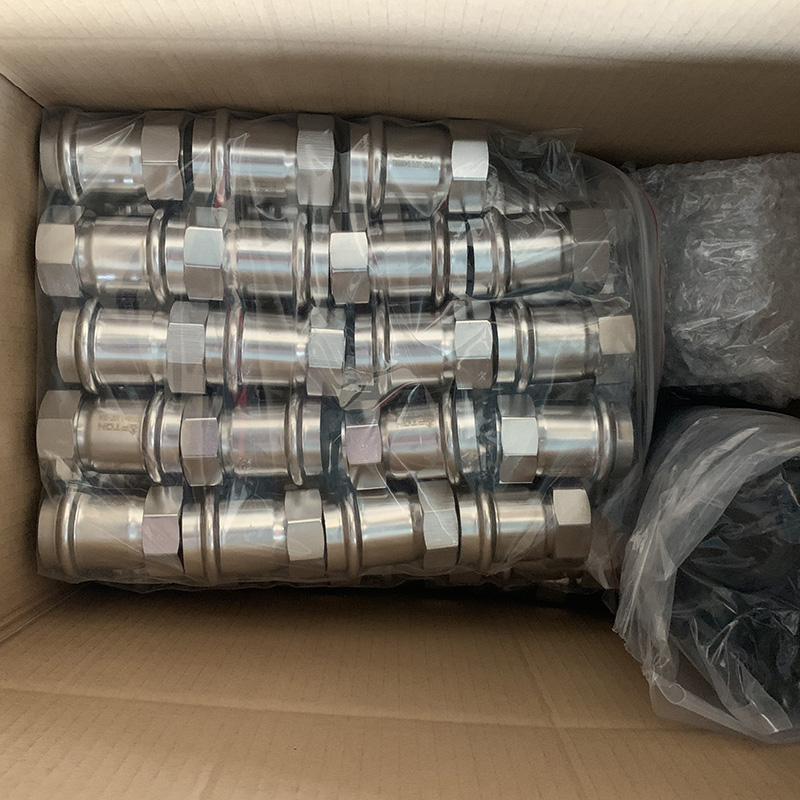

Package: Carton, plywood pallet,PE bag with cap.

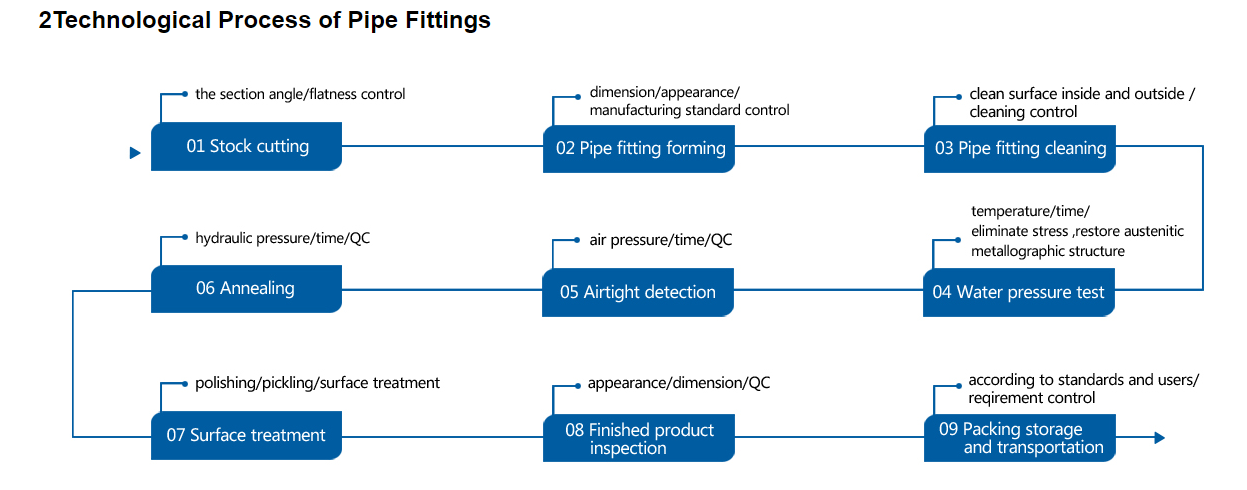

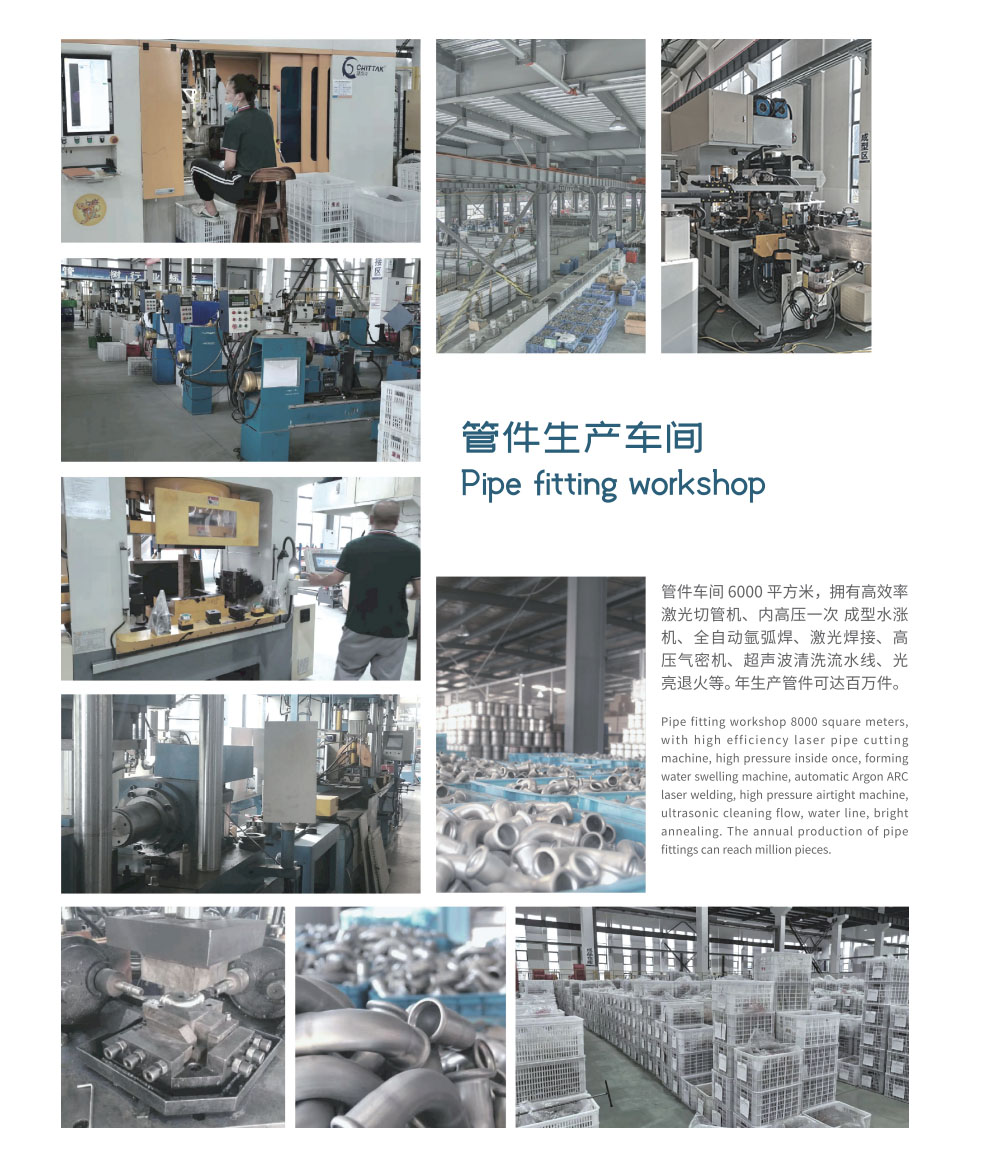

Workshop&processing

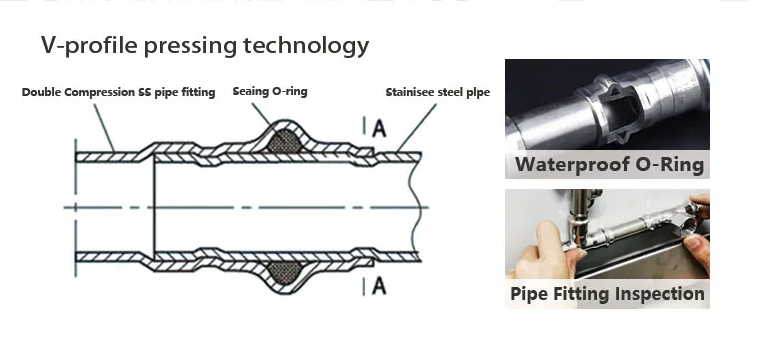

Stainless steel fitting connection:

Scope of application:DN15-DN100 pipes can be used in direct drinking water,hot and cold water,heating,fire fighting,oil transportation, gas and other systerm;

Anti-pullout principle: The mouth is small and the interior ins large, the free state is free to pull out 6-18Mpa;

Anti-rotation principle:Hexagonal or oval,impossible to rotate;

Leak-stopping principle: The R port shrinks and the rubber O ring compresses by 25%,ofrminga hing-pressure zone.
