stainless steel butt welded 45 degree elbow
sanitary stainless steel elbow
3A sanitary stainless steel elbow 45
DIN sanitary elbow 45

SS304 316L Sanitary Butt Welded 45° Elbow

3A Sanitary welded stainless steel elbow, inside and outside with polish 600 grit.

  • Order(MOQ) :

    1
  • Payment :

    T/T LC AT SIGHT
  • Product Origin :

    Jiangsu,China
  • Color :

    Silver
  • Lead Time :

    7-15days
  • Material :

    SS304,316L
  • Customized Support :

    OEM,ODM
  • Share to :

SS304 316L Sanitary  Welded Pipe Fittings:

3A Sanitary welded stainless steel pipe fitting

BEP Sanitary welded stainless steel pipe fitting

DIN  Sanitary welded stainless steel pipe fitting

ISO  Sanitary welded stainless steel pipe fitting

Mainly production: Sanitary 45 elbow, 90 elbow, 180 elbow, Sanitary tee and cross,

                              Sanitary reducer tee, Sanitary reducer, end cap, Sanitary clamp etc.













Butt welded 45° elbow bend is often used to change the direction of the pipeline by 45 degrees, with both plain ends.

Series Ⅰ(GB) Series Ⅱ(JIS) E series(EN) 3A/BPE series
Nominal diameter outer diameter Thickness Nominal diameter outer diameter Thickness Code outer diameter Thickness Code outer diameter Thickness
DN15 16 0.8 DN15 15.88 0.8 DN10 15 1 3/8" 9.53 0.89/1.0
DN20 20 1 DN20 22.22 1 DN15 18 1 1/2" 12.7 1.0/1.24
DN25 25.4 1 DN25 28.58 1 DN20 22 1.2 5/8" 15.88 1.24
DN32 32 1.2 DN32 34 1.2 DN25 28 1.2 3/4" 19.05 1.24/1.65
DN40 40 1.2 DN40 42.7 1.2 DN32 35 1.5 1" 25.4 1.65
DN50 50.8 1.2 DN50 48.6 1.2 DN40 42 1.5 1-1/4" 31.8 1.65
DN65 76.1 2 DN65 76.1 2 DN50 54 1.5 1-1/2" 38.1 1.65
DN80 88.9 2 DN80 88.9 2 DN65 76.1 2 2" 50.8 1.65
DN100 108 2 DN100 101.6 2 DN80 88.9 2 2-1/2" 63.5 1.65
            DN100 108 2 3" 76.2 1.65
                  3-1/2" 88.9 2.11
                  4" 101.6 2.11
                  5" 127 2.77
                  6" 152.4 2.77









Welded Connection Definition

Socket Argon Arc Welded Connection:

 Insert the stainless steel pipe into the fitting socket, with the connection mode of TIG

 Insert the stainless steel pipe into the fitting socket or pipes, with the connection mode of TIG .

 The pipe wall thickness of Socket weld is from 0.6 to 1.5mm, wall thickness over 1.5mm is suitable to butt welding



Suitable for low pressure fluid transportation of hot and cold waterdirect drinking waterheatingair conditionfire protection and gas for civil use , and also for low-pressure fluid transportation pf pharmaceutical , beverage ,food , chemical and other industries.

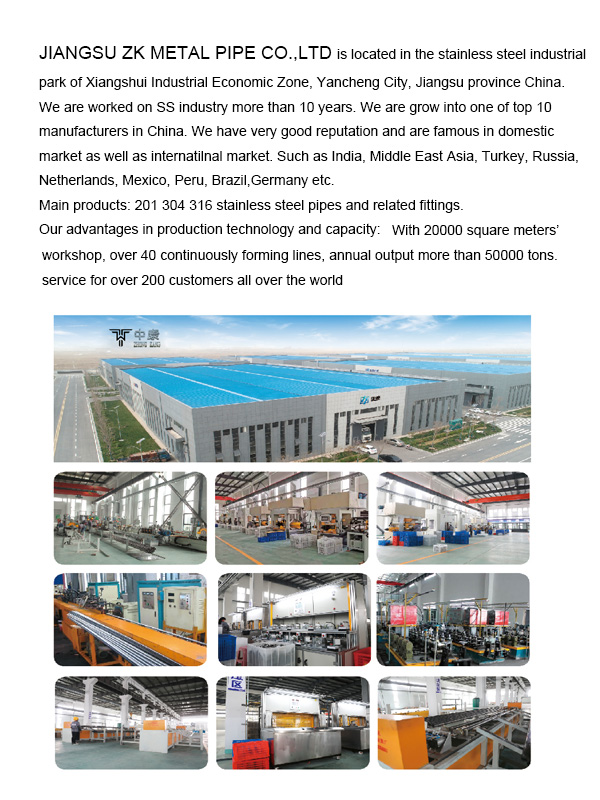

Factory profile & Honor



Packing and delivery

In ZK all of our stainless steel welded pipes & tubes are packaged as per international standard to prevent any possible damage or loss. We often packed the pipes and tubes with PE bag and plastic caps than wrapped woven plastic bag in outside. However, for some special pipes & tubes that are vulnerable to dirt, scratches, stress or rough handling, we will suggest plywood case for protection. Kindly note that the plywood case will have the extra cost, not only its own cost, but also the increased freight cost as the CBM is bigger, we suggest to with the plywood package if LCL shipment. For enhanced customer experience, we also provide dedicated package as per your special requirements.

FOB QINGDAO PORT CHINA or SHANGHAI PORT CHINA.





Marketing and sale

We takes " quality oriented,win-win development " as business philosophy and " Creating customer value " as our duty. We work hard and go on to observing the Stainless steel pipe and pipe fitting market information to seek better marketing mode to meet the customer's demand.  Keep improving!

We attended many dmestic and abroad exhibition,such as TUBE CHINA,TUBE INDIA,WIRE DUSSELDORF,TUBE MIDDLE EAST AFRICA. And we often go to visit the main market of stainless steel pipe and pipe fitting in oversea like Russia,Germany,Brazil,Peru,Netherlands,Middle east, South africa,India and other principal markets to get the real demand from customers and marketing.

Welcome to contact with us and we will do our best for you.
